Spark Plug NGK PFR7S8EG 1675

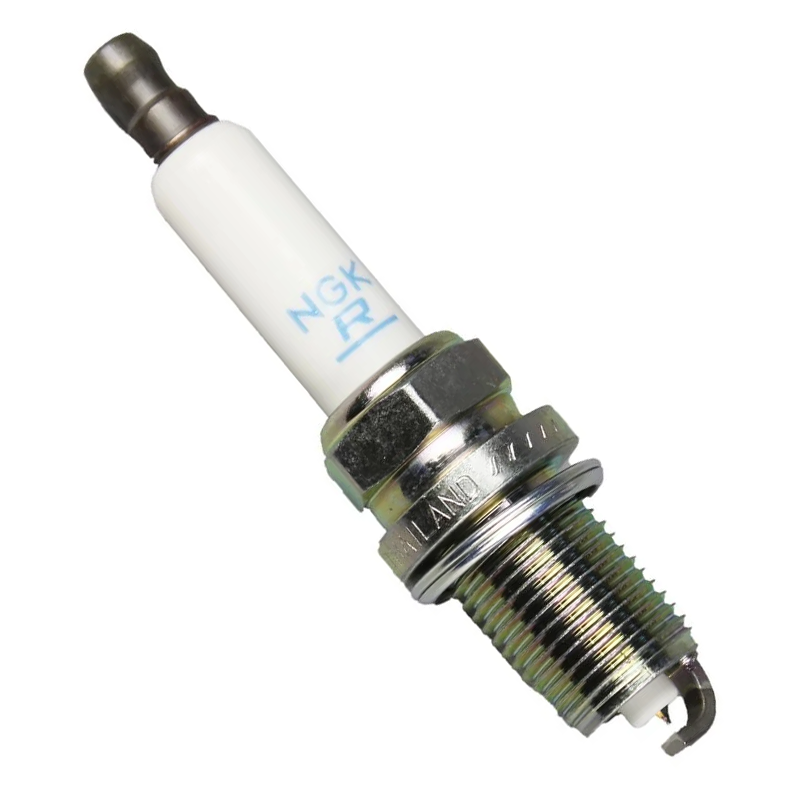

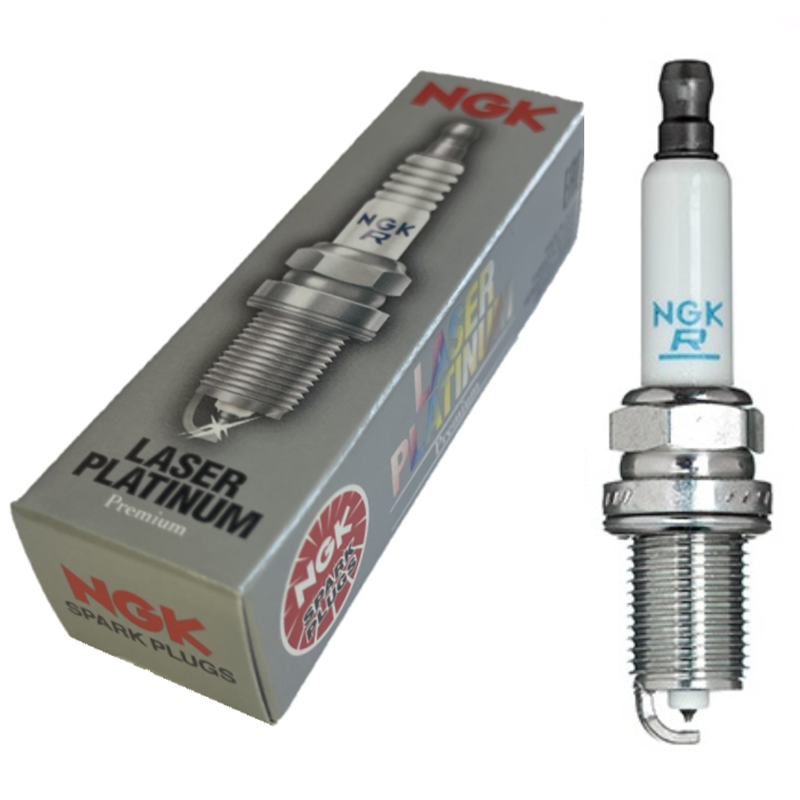

NGK PFR7S8EG 1675 Spark Plug
The NGK PFR7S8EG 1675 spark plug is a key component in the ignition system of gasoline engines. It is responsible for generating the spark necessary to ignite the air-fuel mixture in the engine cylinder. Its proper function is essential for maintaining engine efficiency and smooth operation. Here are the details about the spark plug’s functions and requirements:

How the Spark Plug Works
The spark plug works in a simple but highly effective way. It receives high voltage from the ignition coil, which flows through the central electrode, generating an electric discharge between the central and side electrodes. This discharge creates a spark that ignites the air-fuel mixture in the engine cylinder, allowing the combustion process to begin.

Operating Conditions of the Spark Plug
Spark plugs, including the NGK PFR7S8EG 1675 model, operate in extremely harsh conditions. The temperature around the electrode ranges from 450 to 850 degrees Celsius, which presents a significant challenge for the materials the spark plug is made from. Therefore, the spark plug must be made from materials resistant to high temperatures, corrosion, and wear.

Spark Plug Wear
Over time, due to prolonged use under significant thermal and mechanical stress, spark plugs wear out. Under normal operating conditions, they should be replaced every 30,000 to 60,000 kilometers, depending on the engine type and operating conditions. Replacing spark plugs on time is crucial to ensure optimal engine performance.

Effects of Worn Spark Plugs
Worn spark plugs can lead to several engine problems, including:

• Loss of Engine Performance: Damaged spark plugs cause less efficient ignition of the air-fuel mixture, leading to a decrease in engine power.

• Increased Fuel Consumption: Inefficient ignition increases fuel consumption.

• Problems Starting the Engine: Worn or damaged spark plugs can make it difficult to start the engine.

• RPM Fluctuations and Stuttering: Faulty spark plugs can cause unstable engine operation, especially at low revs, which results in RPM fluctuations and stuttering during driving.

Symptoms of Damaged Spark Plugs
Phenomena that may indicate damaged spark plugs include:

• Blue or Darker Exhaust: This indicates inefficient ignition and poor combustion of the air-fuel mixture.

• Deposits on the Spark Plug Electrodes: Deposits may form due to poor-quality fuel, excessive engine oil consumption, or a damaged head gasket.

Importance of High-Quality Fuel
Poor-quality fuel, especially fuel contaminated with water or low in octane, can accelerate spark plug wear. Issues such as excessive engine oil consumption or a damaged head gasket can also lead to deposits on the spark plugs, which reduces their efficiency and shortens their lifespan.
